1.5 Ton Electric Pallet Stacker 1500kg Capacity 3M Lift Height

Основная информация

Place of Origin:	China

Minimum Order Quantity:	1
Цена:	$1,376.19

Лучшая цена Контакт

Load Capacity:	1500kg	Lifting Height:	3000mm
Load Center:	500mm	Ground Clearance:	30mm
Fork Length:	1220-1520mm	Fork Width:	160-180mm
Driving Speed:	4.5/5.5 km/h	Lifting Speed:	62/88 mm/s
Descending Speed:	94/70 mm/s	Driving Motor Power:	0.8 KW
Lifting Motor Power:	2.2 KW	Battery Capacity:	48V/32Ah
Charger Capacity:	48V/4.5Ah	Noise Level:	≤70 dB(A)
Turning Radius:	1730mm
Выделить:	1.5 ton electric pallet stacker , 1500kg capacity pallet stacker , 3m lift height electric stacker

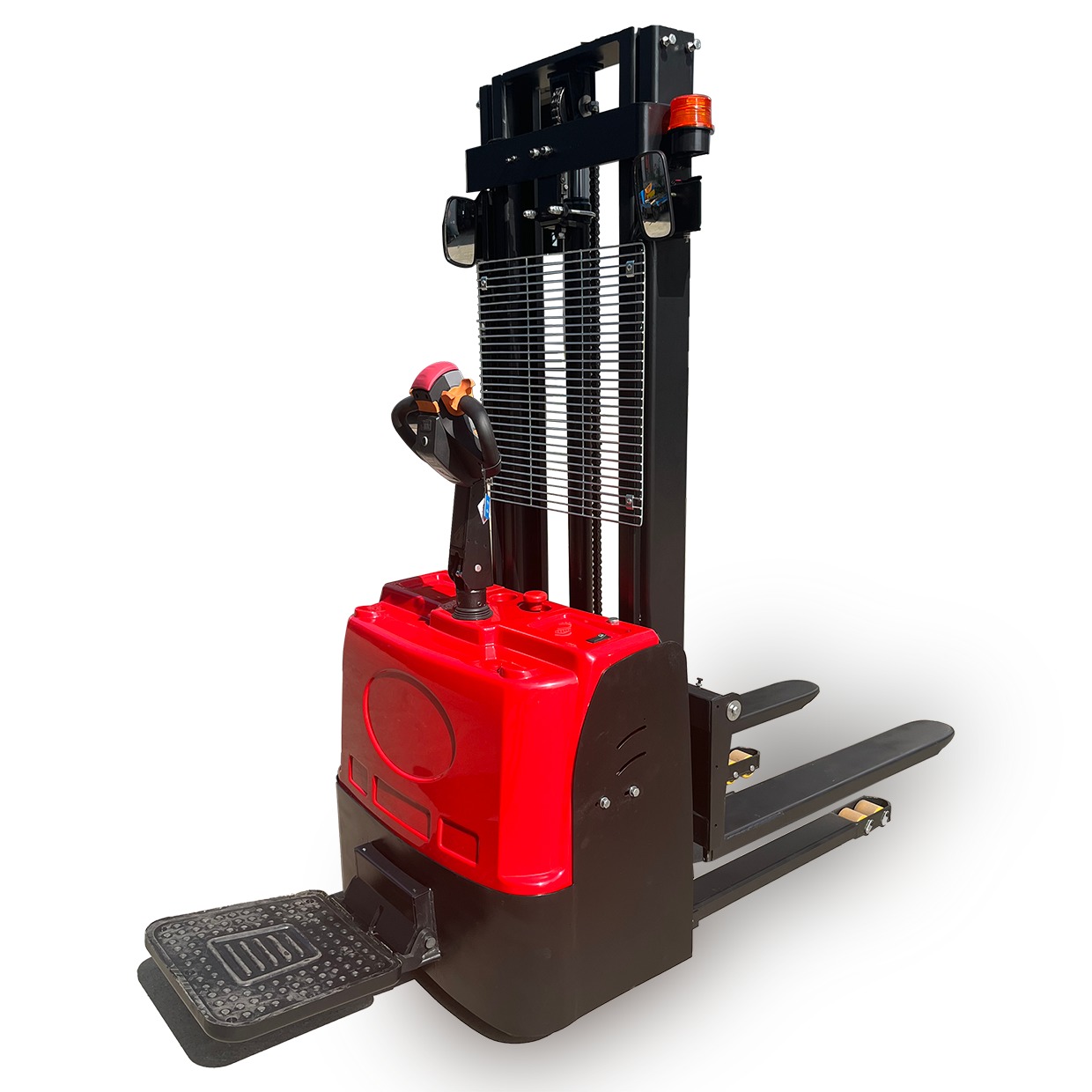

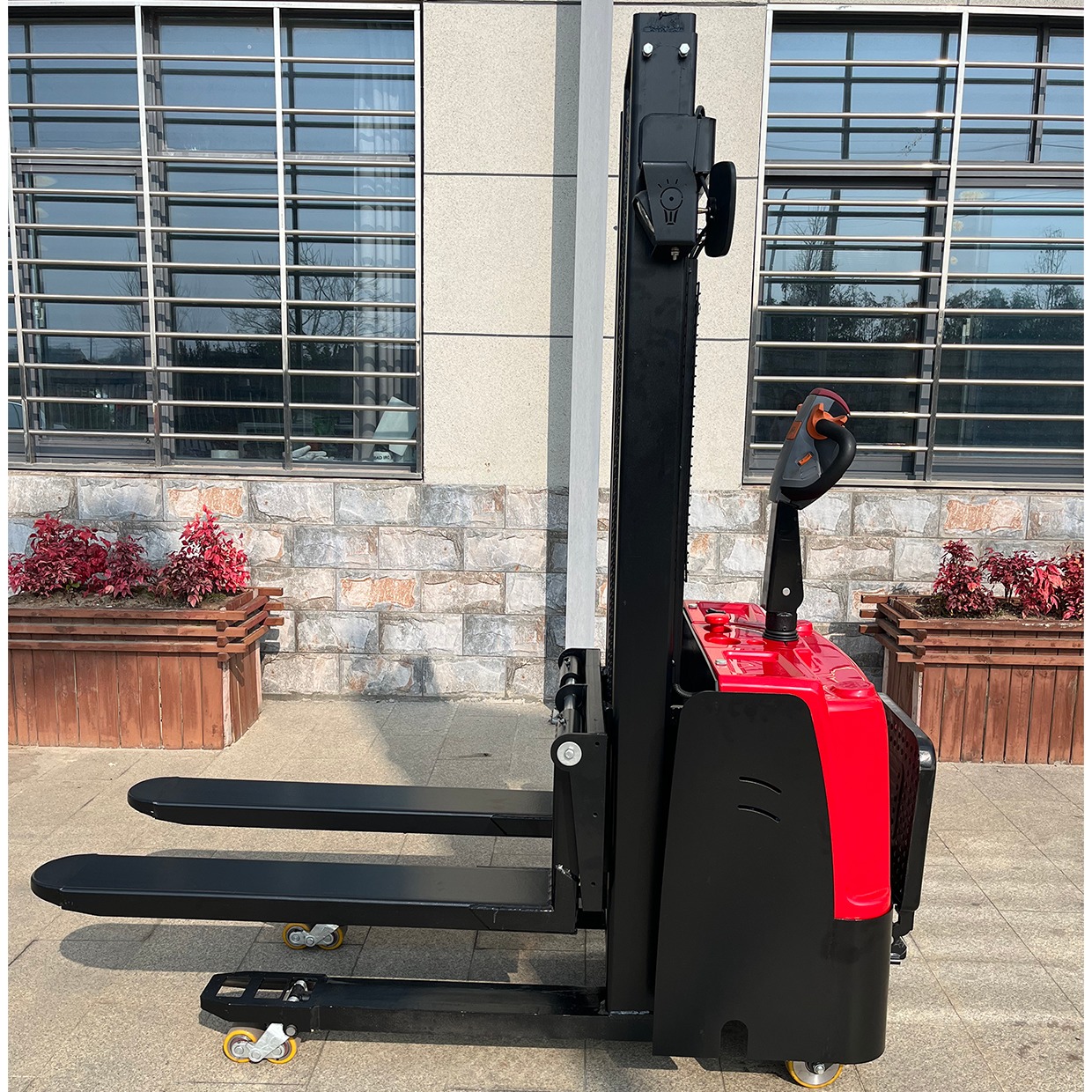

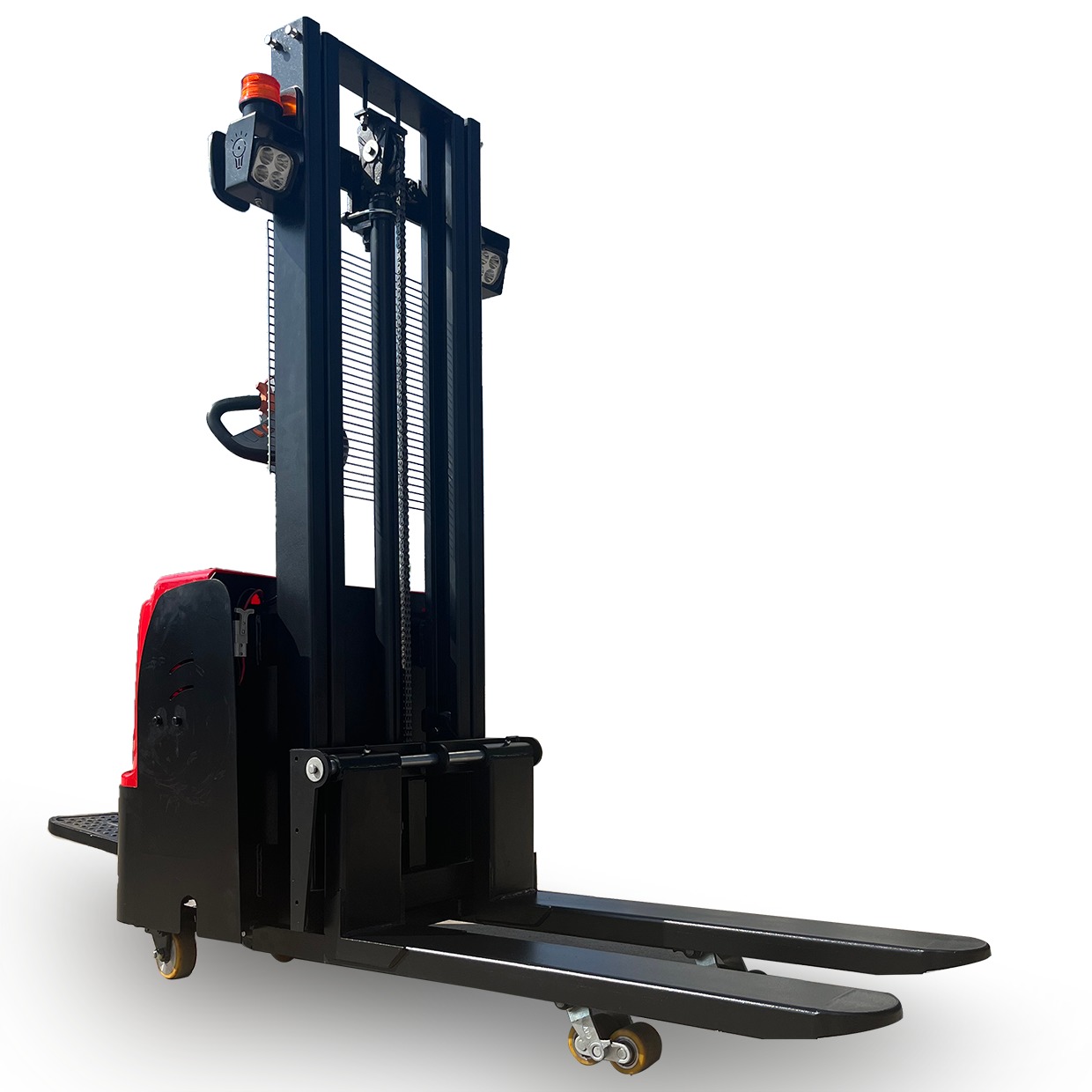

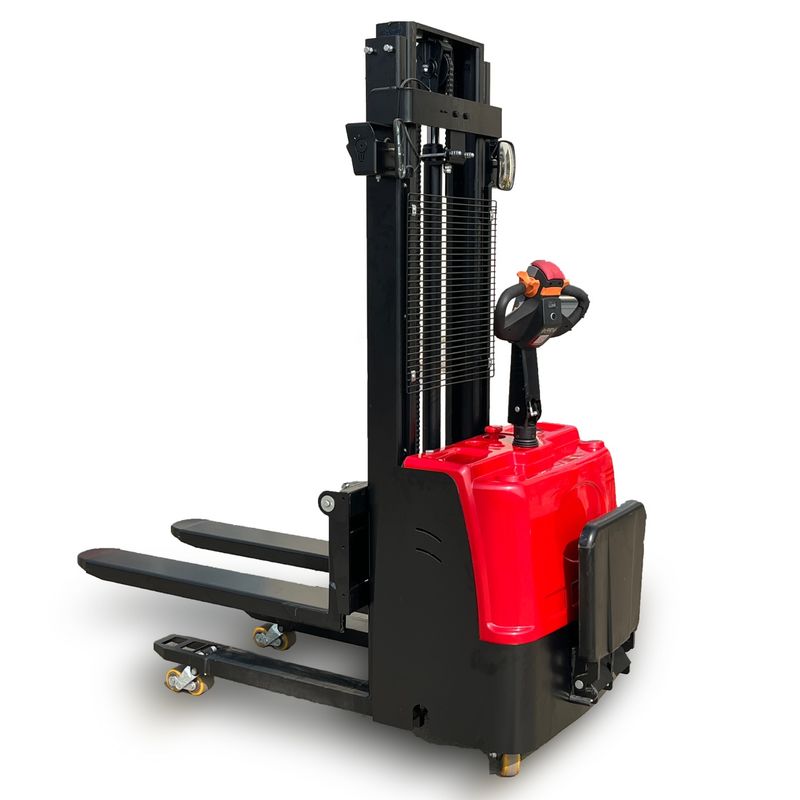

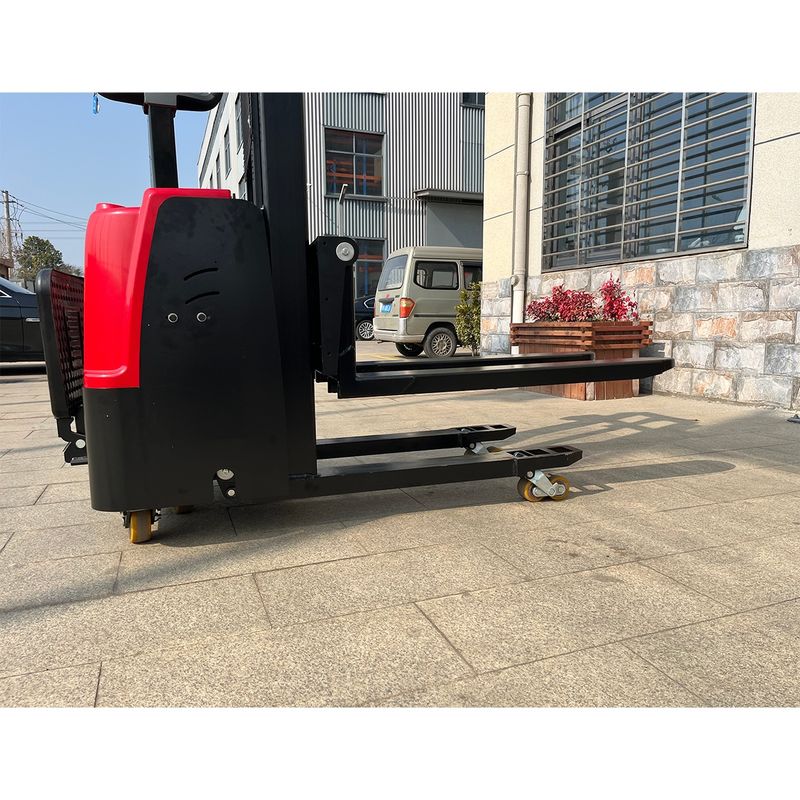

1.5 Ton 1500kg 3M Full Electric Double Lift Stacker

Product Overview

The full-electric dual-lift stacker represents a cutting-edge material handling solution tailored for high-efficiency warehouse operations. Its dual-mast lifting mechanism enables simultaneous elevation of both the forks and load platform, drastically enhancing picking and stacking efficiency.

Driven by a high-performance electric system, it delivers smooth, precise maneuverability with a compact turning radius—making it ideally suited for narrow-aisle environments. Powered by a high-capacity lead-acid battery, this stacker ensures extended operation while offering eco-friendly, low-maintenance performance.

Technical Specifications

Model	CDDA15
Applicable Industries	Building Material Shops
Load Capacity	1500kg, 1000kg
Lifting Height	3000mm
Power Source	DC MOTOR
Warranty	1 Year

Detailed Specifications

Features
Drive system	Electric	Driving mode	Walking
Load Capacity	1500 KG	Load Center	500 MM
Performance
Driving Speed (Empty/Full Load)	4.5/5.5 km/h	Lifting Speed (Empty/Full Load)	62/88 MM/S
Max Gradient (Empty/Full Load)	3/5°	Brake	Electromagnetic

Key Features

All-Electric & Eco-Friendly: Zero emissions and low noise operation
Dual-Lift Efficiency: Dual lifting mechanism enhances stacking efficiency
Compact Design: Excellent maneuverability in narrow aisles
Enhanced Safety: Electromagnetic braking system and mechanical steering
Reliable Power: Lead-acid battery with stable performance

Machine Components

Control Handle

Brand: KAD domestic famous control handle with functional buttons that can control UP/DOWN, FORWARD/BACKWARD sensitively.

Operation Panel

Combined with the key, battery indicator, emergency switch. Functional panel with beautiful design for easy operation.

Frequently Asked Questions

Q: What is your terms of packing?

A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.

Q: What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q: How do you ensure product quality?

A: We conduct 100% testing before delivery to ensure all products meet quality standards.
